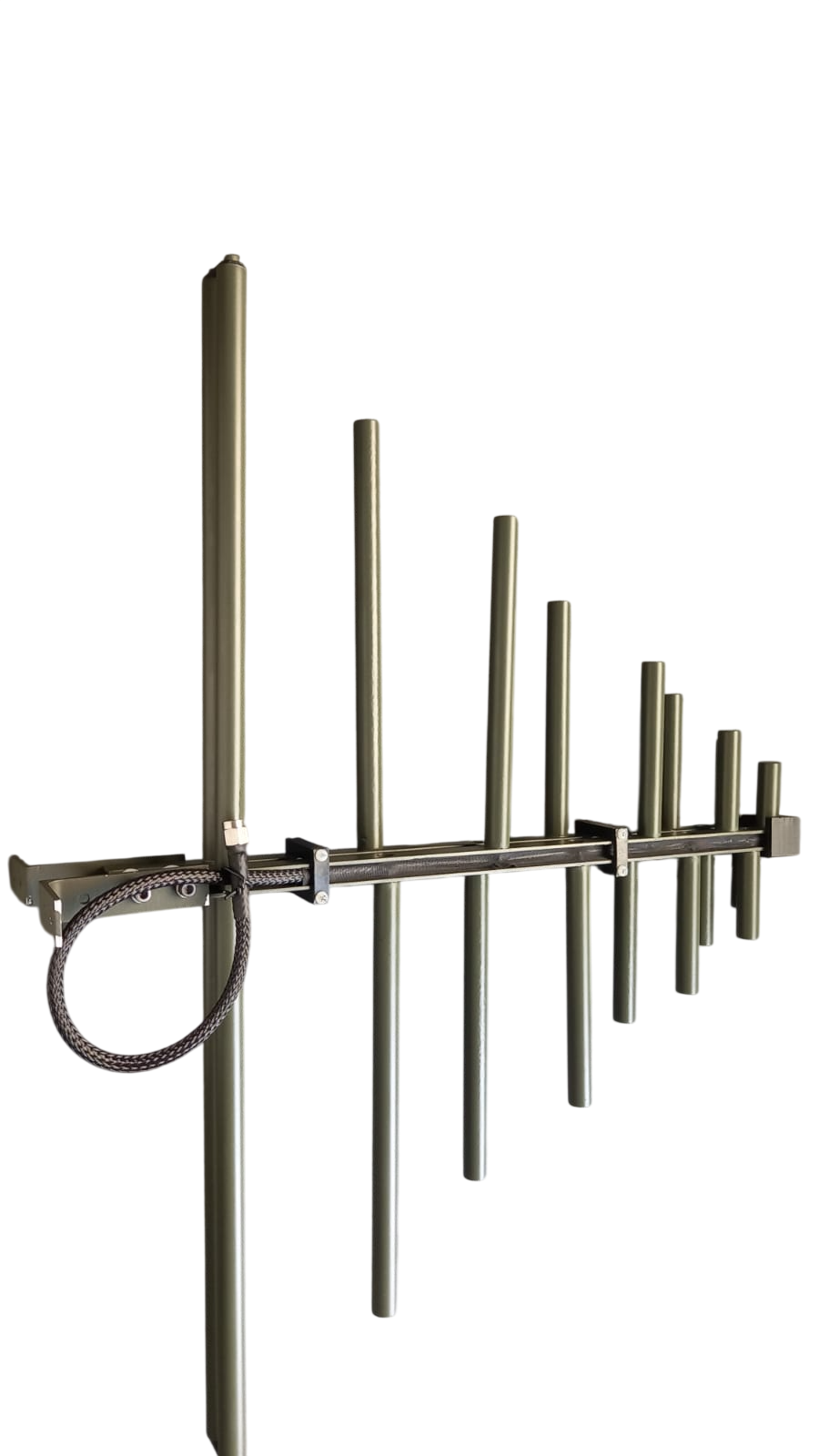

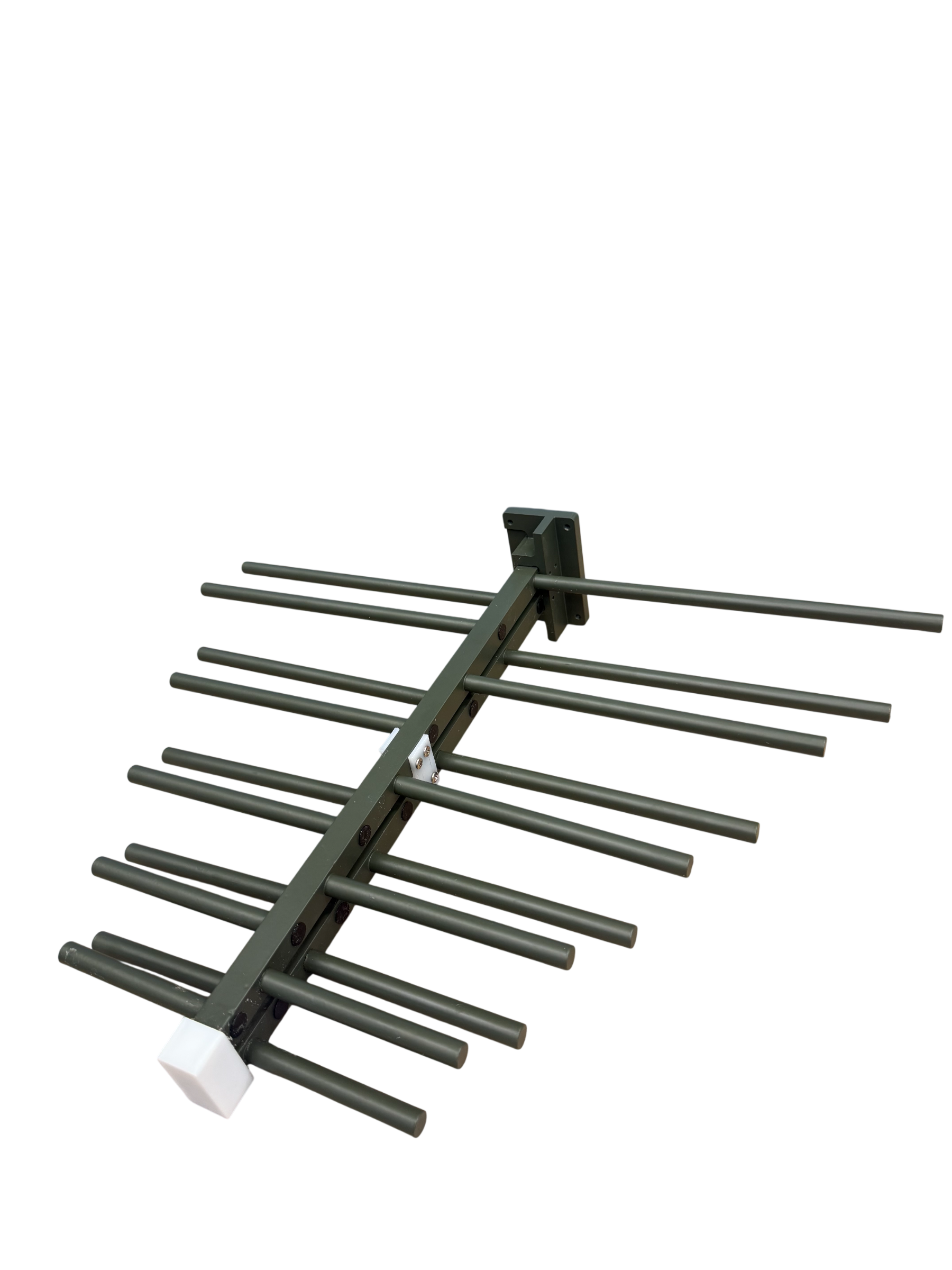

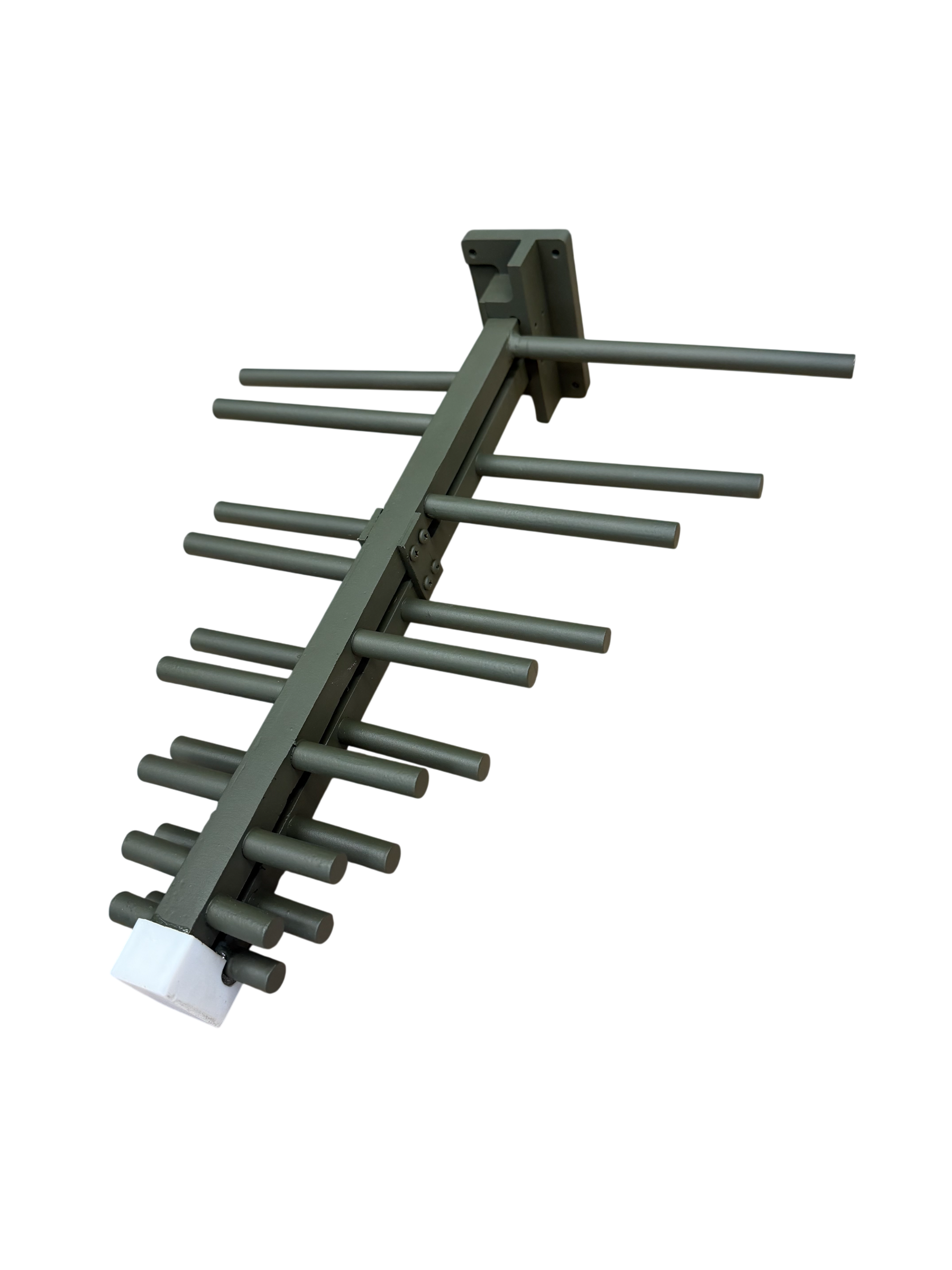

LPDA Antennas

Wideband. Directional. Stable. Field-ready.

Manufactured for wideband directional operation, AntennaTec LPDA antennas support stable RF performance across extended frequency ranges and demanding deployment conditions.

LPDA antennas are widely used in spectrum monitoring, electronic warfare, SIGINT, ESM, ECM, jamming systems, communication testing, field measurements and specialist RF applications.

The range can include compact, high-gain, ruggedised and radome-compatible LPDA antennas, with suitable connector, mounting and platform-integration options.

Custom LPDA antennas can be produced to meet specific requirements for frequency range, gain, polarisation, beamwidth, power handling and deployment environment.

PRODUCT NO	CATALOGUE NO	FREQUENCY (GHz)	VSWR	GAIN (dBi)	POLARIZATION	POWER c.w. (W)	CONNECTOR
AT-L-0.05-0.41-N	AT-L-0.05-0.41-N	0.05 - 0.41	< 2.5:1	5-9	linear/vertical	200	N-type
AT-L-0.4-6-N	AT-L-0.4-6-N	0.4 - 6	< 2.5:1	7-9	linear/vertical	200	N-type
AT-L-0.5-2-N	AT-L-0.5-2-N	0.5 - 2	< 2:1	> 6	linear/vertical	200	N-type
AT-L-2-4-N	AT-L-2-4-N	2 - 4	< 2:1	> 6	linear/vertical	200	N-type
AT-L-4-6-N	AT-L-4-6-N	4 - 6	< 2:1	> 7	linear/vertical	200	N-type
AT-L-0.3-0.5-N	AT-L-0.3-0.5-N	0.3 - 0.5	< 2.5:1	5-9	linear/vertical	200	N-type

Speak To A Specialist About Your Requirement.
